• Anatomic reduction of the articular surface.
• Stable fixation.
• Careful handling and preservation of the soft tissues and blood supply to the bone.
• The Universal Locking Plate System is indicated for temporary internal fixation and stabilization of osteotomies and fractures, including:
  • Comminuted fractures
  • Supracondylar fractures
  • Extra-articular fractures
  • Fractures in osteopenic bone
  • Nonunions
  • Malunions

• 3.5 mm cortex screw.
• 3.5 mm Locking Head Screw.
• 3.5 mm Cancellous Locking Head Screw

• Titanium Alloy Grade 5 and Stainless Steel 316 L.

•

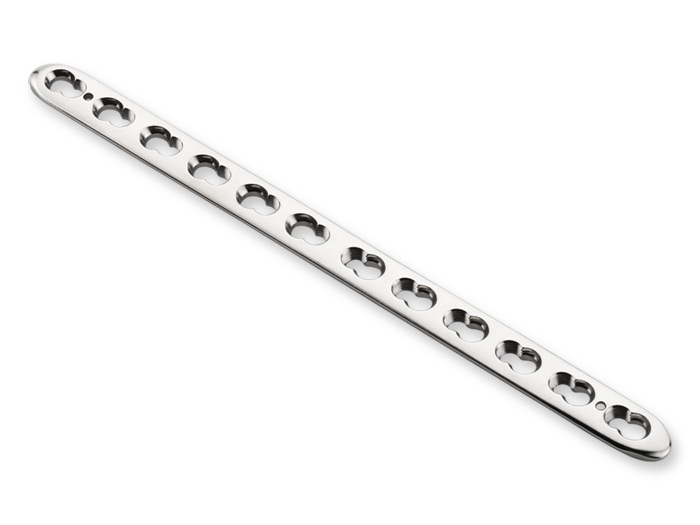

  Small Locking Compression Plates

  Hole	S.S. 316L	Titanium
  4	1.701.0.04	2.701.0.04
  5	1.701.0.05	2.701.0.05
  6	1.701.0.06	2.701.0.06
  7	1.701.0.07	2.701.0.07
  8	1.701.0.08	2.701.0.08
  9	1.701.0.09	2.701.0.09
  10	1.701.0.10	2.701.0.10
  11	1.701.0.11	2.701.0.11
  12	1.701.0.12	2.701.0.12

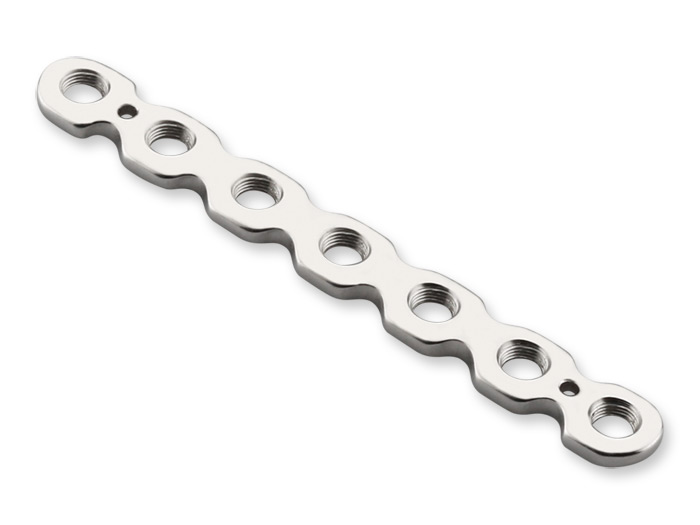

• Reconstruction Round Locking Plate

  Hole	S.S. 316L	Titanium
  4	1.704.0.04	2.704.0.04
  5	1.704.0.05	2.704.0.05
  6	1.704.0.06	2.704.0.06
  7	1.704.0.07	2.704.0.07
  8	1.704.0.08	2.704.0.08
  9	1.704.0.09	2.704.0.09
  10	1.704.0.10	2.704.0.10
  11	1.704.0.11	2.704.0.11
  12	1.704.0.12	2.704.0.12
  13	1.704.0.13	2.704.0.13


•

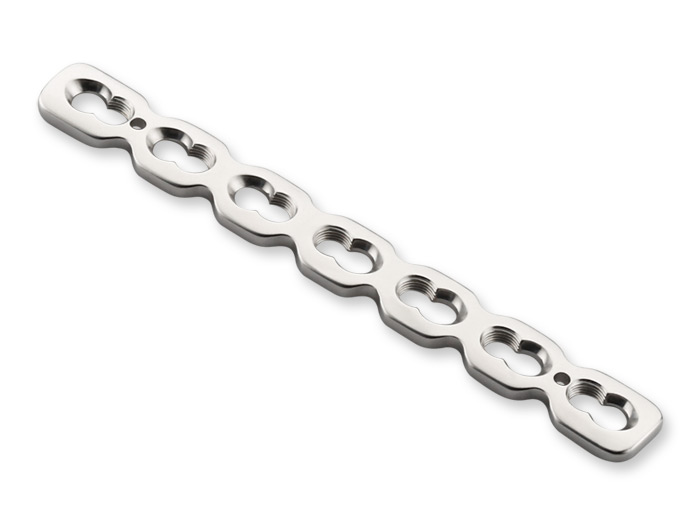

  Reconstruction Locking Plate

  Hole	S.S. 316L	Titanium
  4	1.704.1.04	2.704.1.04
  5	1.704.1.05	2.704.1.05
  6	1.704.1.06	2.704.1.06
  7	1.704.1.07	2.704.1.07
  8	1.704.1.08	2.704.1.08
  9	1.704.1.09	2.704.1.09
  10	1.704.1.10	2.704.1.10
  11	1.704.1.11	2.704.1.11
  12	1.704.1.12	2.704.1.12
  13	1.704.1.13	2.704.1.13

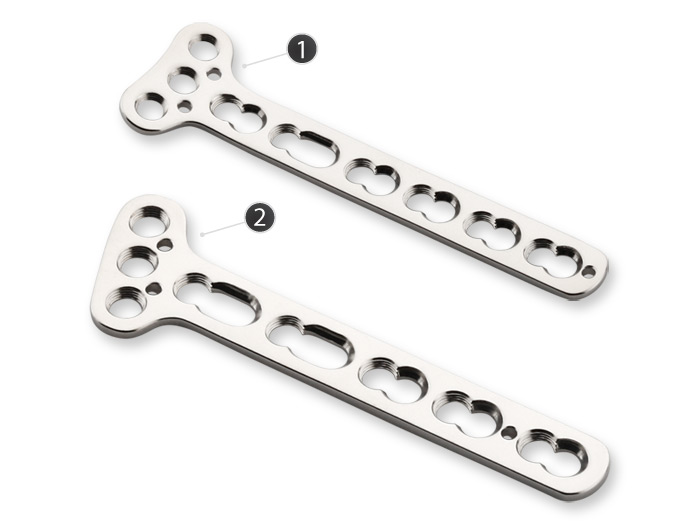

• 1T-Right Angled Locking Plates

  Hole	S.S. 316L	Titanium
  3	1.705.0.03	2.705.0.03
  4	1.705.0.04	2.705.0.04
  5	1.705.0.05	2.705.0.05
  6	1.705.0.06	2.705.0.03




  2T-Oblique Locking Plates

  Hole	S.S. 316L	Titanium
  3	1.706.X.03	2.706.X.03
  4	1.706.X.04	2.706.X.04
  5	1.706.X.05	2.706.X.05
  6	1.706.X.06	2.706.X.06
