• Choice of posterolateral and medial plates allows implant placement to address the individual fracture pattern.
• Plates are precontoured for anatomical fit.
• Distal Humerus dorsoleteral Plate is available with or without lateral support.
• Increased stability can be gained from two plate fixation of distal humerus fractures.
• The two plate construct creates a girder like structure which strengthens the fixation.

• Left and right versions
• Distal holes accept 2.7 mm Locking Head screw
• 3.5 mm cortex screw.
• 3.5 mm Locking Head Screw.
• 3.5 mm Cancellous Locking Head Screw.

• Titanium Alloy Grade 5 and Stainless Steel 316 L.

•

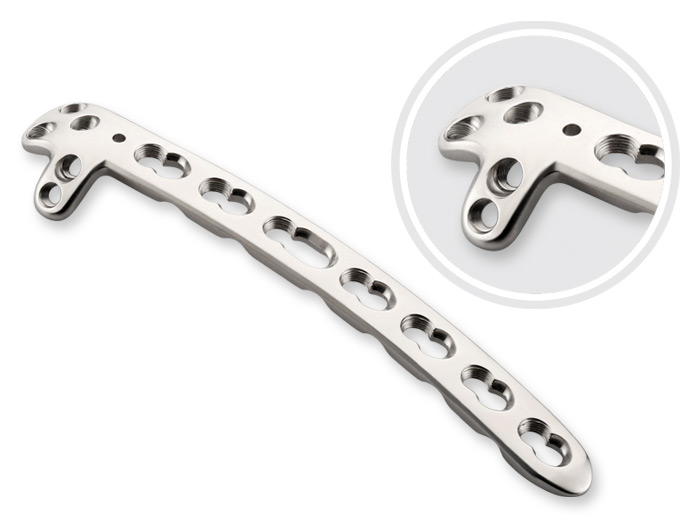

  Dorsolateral Locking Plate with lateral support

  Hole	S.S. 316L	Titanium
  4	1.716.X.04	2.716.X.04
  5	1.716.X.05	2.716.X.05
  6	1.716.X.06	2.716.X.06
  7	1.716.X.07	2.716.X.07
  8	1.716.X.08	2.716.X.08
  9	1.716.X.09	2.716.X.09
  10	1.716.X.10	2.716.X.10
  11	1.716.X.11	2.716.X.11
  13	1.716.X.13	2.716.X.13

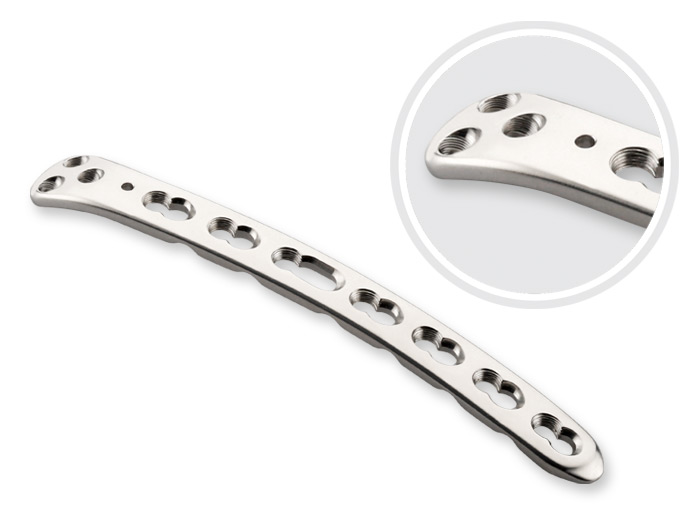

• Distal Humerus Dorsolateral Locking Plates Without lat.Support

  Hole	S.S. 316L	Titanium
  4	1.717.X.04	2.717.X.04
  5	1.717.X.05	2.717.X.05
  6	1.717.X.06	2.717.X.06
  7	1.717.X.07	2.717.X.07
  8	1.717.X.08	2.717.X.08
  9	1.717.X.09	2.717.X.09
  10	1.717.X.10	2.717.X.10
  11	1.717.X.11	2.717.X.11
  13	1.717.X.13	2.717.X.13


•

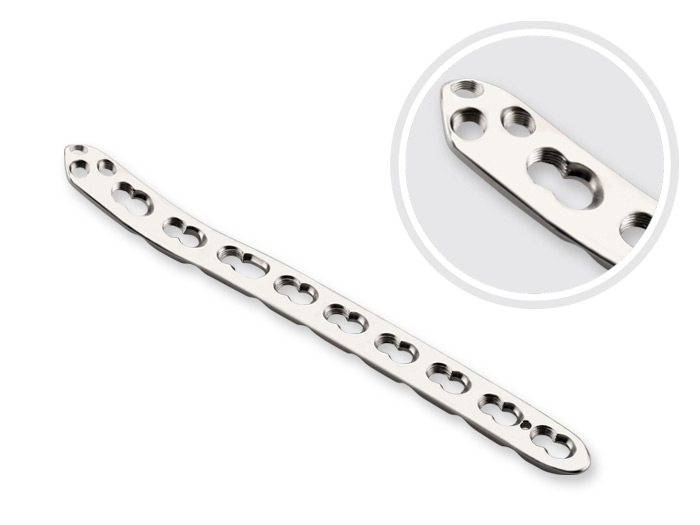

  Distal Humerus Medial Locking Plates

  Hole	S.S. 316L	Titanium
  4	1.718.X.04	2.718.X.04
  5	1.718.X.05	2.718.X.05
  6	1.718.X.06	2.718.X.06
  7	1.718.X.07	2.718.X.07
  8	1.718.X.08	2.718.X.08
  9	1.718.X.09	2.718.X.09
  10	1.718.X.10	2.718.X.10
  11	1.718.X.11	2.718.X.11
  13	1.718.X.13	2.718.X.13
