• Broad plate range for varying wrist anatomy and fracture patterns
• Different widths and lengths to meet different anatomical requirements
• Core option for extra-articular fractures
• For fragment specific treatment of dorsally displaced fractures
• Wide range of L, T and straight plates

• Left and right versions
• 2.7 mm cortex screw.
• 2.7 mm Locking Head Screw.
• 2.7 mm Cancellous Locking Head Screw.

• Titanium Alloy Grade 5 and Stainless Steel 316 L.

•

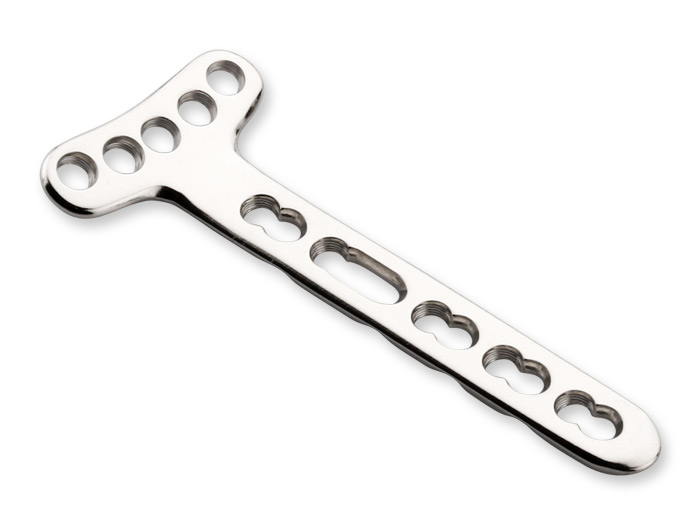

  Volar LCP Distal Radius Locking Plate Extra Articular

  Hole	S.S. 316L	Titanium
  5+3	1.730.X.53	2.730.X.53
  4+5	1.730.X.45	2.730.X.45
  5+5	1.730.X.55	2.730.X.55

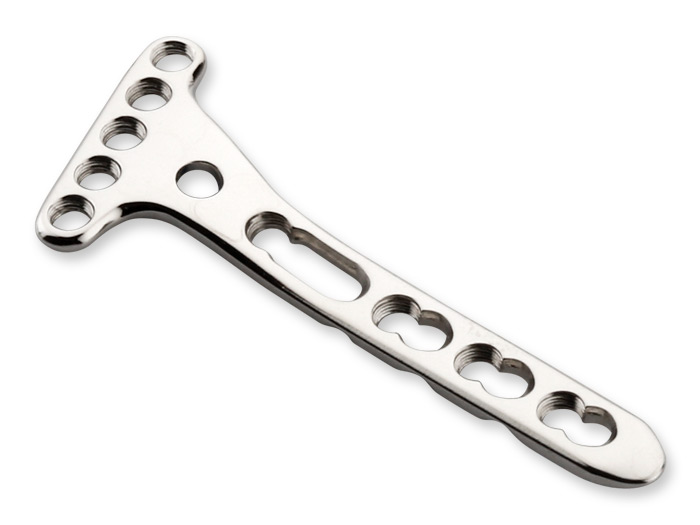

• Volar LCP Distal Radius Locking Plate

  Hole	S.S. 316L	Titanium
  5+3	1.729.X.53	2.729.X.53
  5+5	1.729.X.55	2.729.X.55


•

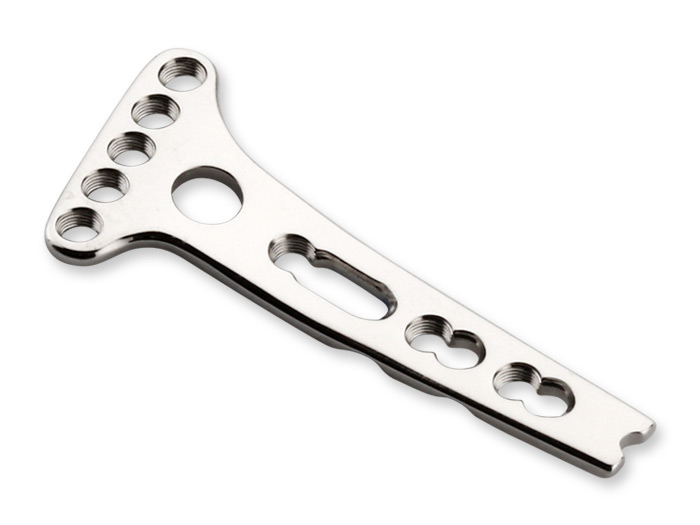

  Volar LCP Buttress Locking Plate

  Hole	S.S. 316L	Titanium
  5+3	1.728.X.53	2.728.X.53

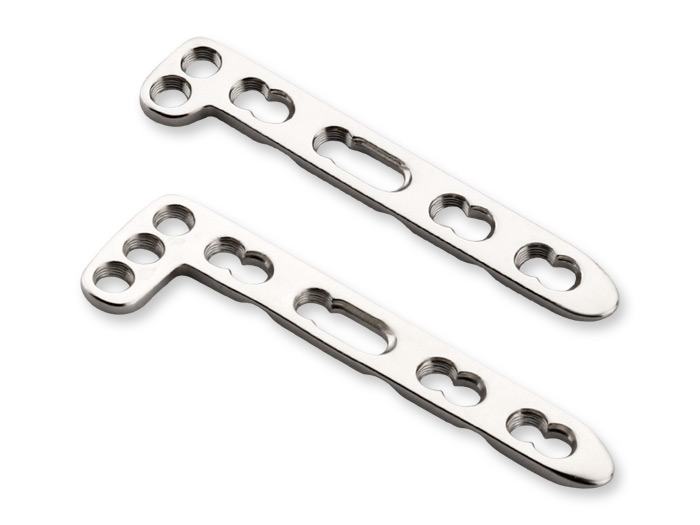

• LCP L Distal Radius Angled Locking Plate

  Hole	S.S. 316L	Titanium
  2+3	1.725.X.23	2.725.X.23
  2+4	1.725.X.24	2.725.X.24
  3+3	1.725.X.33	2.725.X.33
  3+4	1.725.X.34	2.725.X.34


•

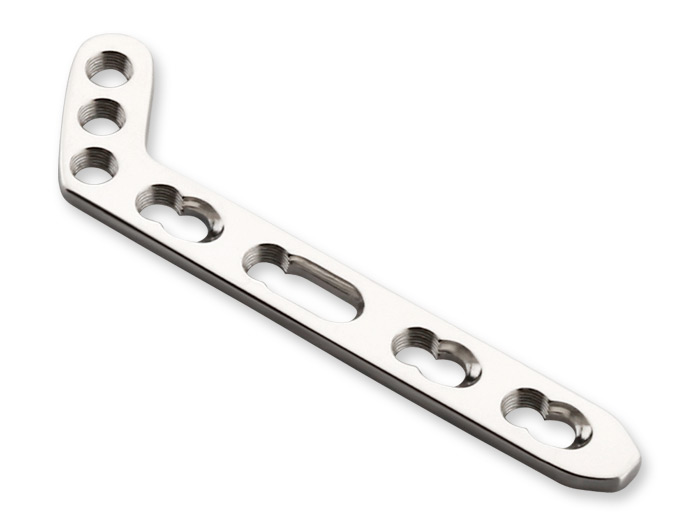

  LCP L Distal Radius Oblique Locking Plate

  Hole	S.S. 316L	Titanium
  3+3	1.726.X.33	2.726.X.33
  3+4	1.726.X.34	2.726.X.34

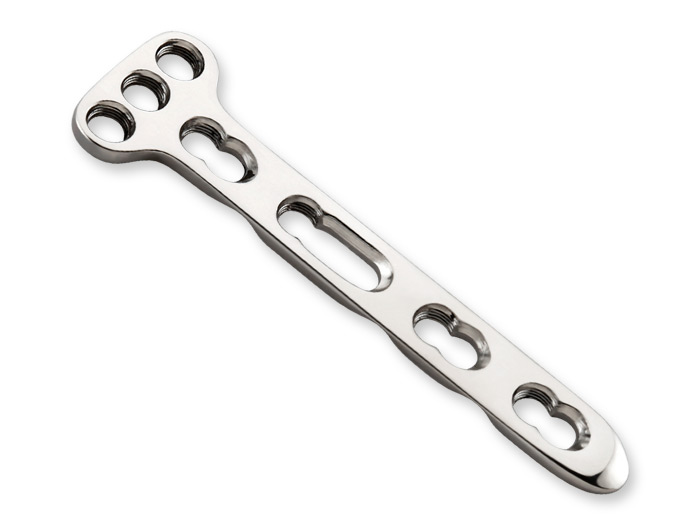

• LCP T Distal Radius Straight Locking Plate

  Hole	S.S. 316L	Titanium
  3+3	1.727.0.33	2.727.0.33
  3+4	1.727.0.34	2.727.0.34


•

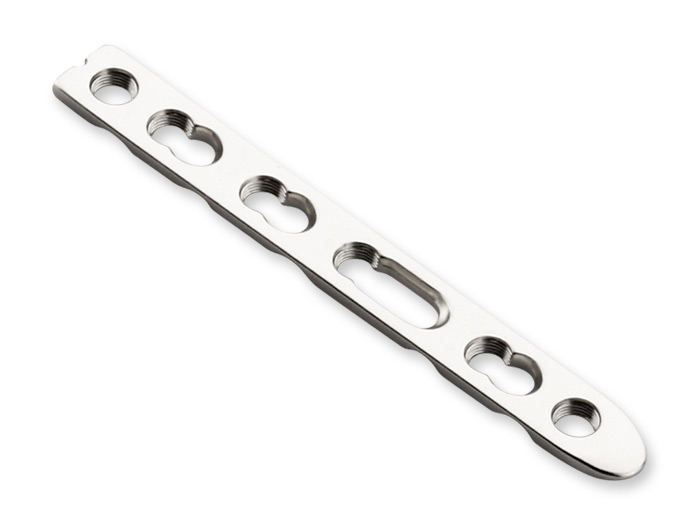

  LCP Distal Radius Straight Locking Plate

  Hole	S.S. 316L	Titanium
  5	1.724.0.05	2.724.0.05
  6	1.724.0.06	2.724.0.06
