• 5.0 mm Universal Locking Fragment System is a line of polyaxial locking plates for the treatment of femur, tibia and humerus shaft fractures.
• The 5.0 mm Universal Locking System is indicated for temporary internal fixation and stabilization of fractures and osteotomies including:
  • Periprosthetic fractures
  • Comminuted fractures
  • Supracondylar fractures
  • Fractures in osteopenic bone
  • Nonunions
  • Malunions
  • Intra articular fractures of Proximal Tibia

• 4.5 mm cortex screw.
• 5.0 mm Locking Head Screw.
• 5.0 mm Cancellous Locking Head Screw.

• Titanium Alloy Grade 5 and Stainless Steel 316 L.

•

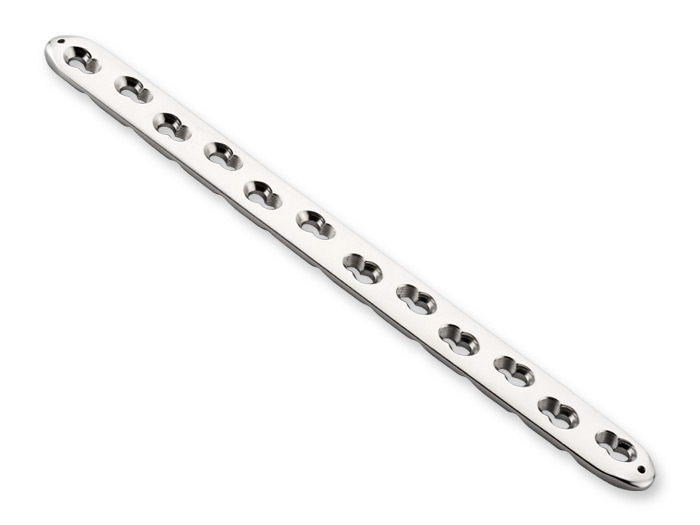

  Broad Locking Compression Plate

  Hole	S.S. 316L	Titanium
  5	1.703.0.05	2.703.0.05
  6	1.703.0.06	2.703.0.06
  7	1.703.0.07	2.703.0.07
  8	1.703.0.08	2.703.0.08
  9	1.703.0.09	2.703.0.09
  10	1.703.0.10	2.703.0.10
  11	1.703.0.11	2.703.0.11
  12	1.703.0.12	2.703.0.12

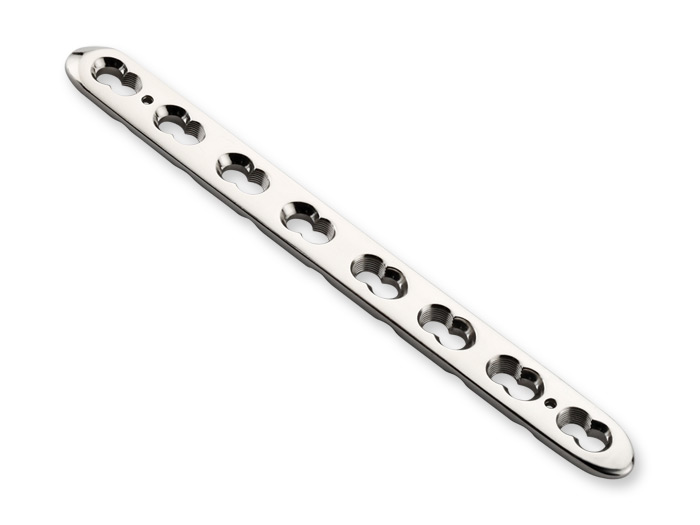

• Narrow Locking Compression Plates

  Hole	S.S. 316L	Titanium
  4	1.702.0.04	2.702.0.04
  5	1.702.0.05	2.702.0.05
  6	1.702.0.06	2.702.0.06
  7	1.702.0.07	2.702.0.07
  8	1.702.0.08	2.702.0.08
  9	1.702.0.09	2.702.0.09
  10	1.702.0.10	2.702.0.10
  11	1.702.0.11	2.702.0.11
  12	1.702.0.12	2.702.0.12


•

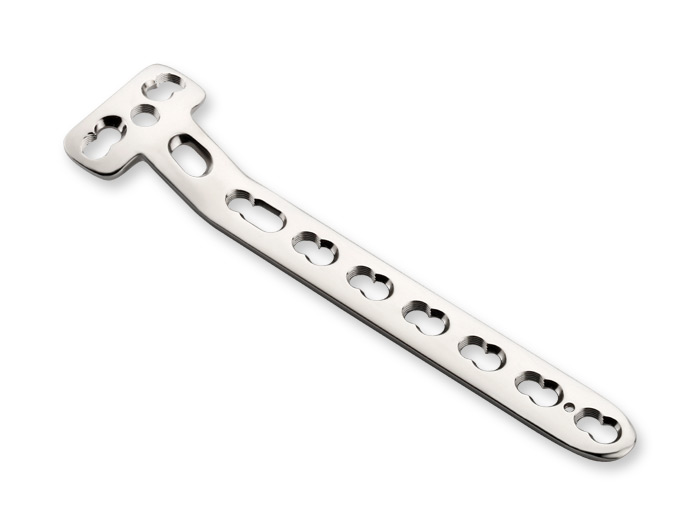

  T-Buttress Locking Plate

  Hole	S.S. 316L	Titanium
  4	1.708.0.04	2.708.0.04
  5	1.708.0.05	2.708.0.05
  6	1.708.0.06	2.708.0.06
  7	1.708.0.07	2.708.0.07
  8	1.708.0.08	2.708.0.08
  9	1.708.0.09	2.708.0.09
  10	1.708.0.10	2.708.0.10

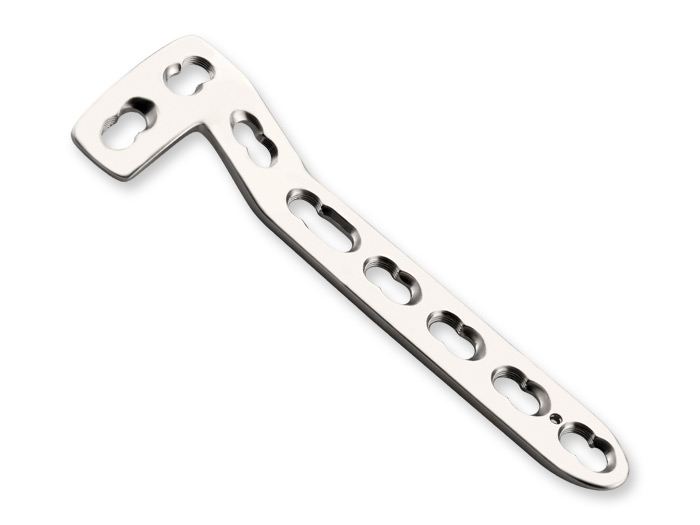

• L-Buttress Locking Plate

  Hole	S.S. 316L	Titanium
  4	1.709.X.04	2.709.X.04
  5	1.709.X.05	2.709.X.05
  6	1.709.X.06	2.709.X.06
  7	1.709.X.07	2.709.X.07
  8	1.709.X.08	2.709.X.08
  9	1.709.X.09	2.709.X.09
  10	1.709.X.10	2.709.X.10
